SAKURA™

Energy-efficient Edge AI Accelerator
SAKURA-II-chip-silver

Supported Frameworks & Applications

SAKURA-II-chip-silver

SAKURA™
AI Accelerator

EdgeCortix SAKURA-II is an advanced AI accelerator providing best-in-class efficiency, driven by our low-latency Dynamic Neural Accelerator (DNA). SAKURA-II is designed for applications requiring fast, real-time Batch=1 AI inferencing with excellent performance in a small footprint, low power silicon device.

SAKURA-II is designed to handle the most challenging Generative AI applications at the edge, enabling designers to create new content based on disparate inputs like images, text, and sounds. Supporting multi-billion parameter models like Llama 2, Stable Diffusion, DETR, and ViT within a typical power envelope of 8W, SAKURA-II meets the requirements for a vast array of Edge Generative AI uses in Vision, Language, Audio, and many other applications.

SAKURA™
Key Benefits

Optimized for Generative AI
Supports multi-billion parameter Generative AI models like Llama 2, Stable Diffusion, DETR, and ViT within a typical power envelope of 8W
Efficient AI Compute
Achieves more than 2x the AI compute utilization of other solutions, resulting in exceptional energy efficiency
Robust Memory Bandwidth
Up to 4x more DRAM bandwidth than competing AI accelerators, ensuring superior performance for LLMs and LVMs
Large DRAM Capacity
Support for up to 32GB of DRAM, enabling efficient processing of complex vision and Generative AI workloads
Sparse Computing
Reduces memory footprint and optimizes
DRAM bandwidth
Real-Time Data Streaming
Optimized for low-latency operations with
Batch=1 processing
Arbitrary Activation Function Support
Hardware-accelerated approximation provides
enhanced adaptability
Advanced Precision
Software-enabled mixed-precision provides near
FP32 accuracy
Power Management
Advanced power management enables ultra-high efficiency modes
EdgeCortix SAKURA-II Size

SAKURA™
Technical Specs

Performance DRAM Support DRAM Bandwidth On-chip SRAM
60 TOPS (INT8)
30 TFLOPS (BF16)
Dual 64-bit LPDDR4x
(8/16/32GB total)
68 GB/sec 20MB
Compute Efficiency Temp Range Power Consumption Package
Up to 90% utilization -40C to 85C 8W (typical) 19mm x 19mm BGA
Performance
60 TOPS (INT8)
30 TFLOPS (BF16)
DRAM Support
Dual 64-bit LPDDR4x
(8/16/32GB total)
DRAM Bandwidth
68 GB/sec
On-chip SRAM
20MB
Compute Efficiency
Up to 90% utilization
Temp Range
40C to 85C
Power Consumption
8W (typical)
Package
19mm x 19mm BGA

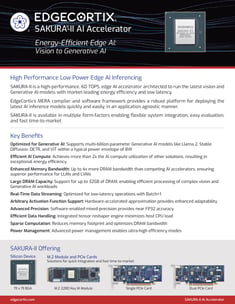

Get the details in the SAKURA-II product brief

EdgeCortix-SAKURA-II-A4-Thumb

MERA Software Supports Diverse Neural Networks from Convolutions to the Latest Generative AI Models

Example Models Include:
Transformer Models Convolutional Models
DETR
DINO
Whisper Encoder / Decoder
DistillBERT
DistilBert - SST2
Nano-GPT
GPT-2 - 150M
Distil-GPT-2 (HF)
GPT-2 (HF) - 117M
GPT-2 (HF) - medium / large
GPT-2 - XL (HF) - 1.5B
TinyLama (HF) - 1.1B
Phi-2 (HF) - 3B
Open-Llama2 (HF) - 7B
CodeLlama (HF) - 7B
Mistral-v0.2 (HF) - 7B
Llama3 - 8B
ViT (HF) / CLIP / Mobile-ViT
ConvNextV1/V2 (HF)
SegFormer
Roberta-Emotion
StableDiffusion V1.5
ResNet 18
ResNet 50/101
Big YoloV3
TinyYolo V3
Yolo V5/V6/V8
YoloX
EfficientNet-Lite
EfficientNet-V2
SFA3D
MonoDepth - MiDaS
U-Net
MoveNet
DeepLab
MobileNet V1-V2
MobileNetV2-SSD
GladNet
ABPN
SCI
Example Models Include:
Transformer Models
DETR
DINO
Whisper Encoder / Decoder
DistillBERT
DistilBert - SST2
Nano-GPT
GPT-2 - 150M
Distil-GPT-2 (HF)
GPT-2 (HF) - 117M
GPT-2 (HF) - medium / large
GPT-2 - XL (HF) - 1.5B
TinyLama (HF) - 1.1B
Phi-2 (HF) - 3B
Open-Llama2 (HF) - 7B
CodeLlama (HF) - 7B
Mistral-v0.2 (HF) - 7B
Llama3 - 8B
ViT (HF) / CLIP / Mobile-ViT
ConvNextV1/V2 (HF)
SegFormer
Roberta-Emotion
StableDiffusion V1.5
Convolutional Models
ResNet 18
ResNet 50/101
Big YoloV3
TinyYolo V3
Yolo V5/V6/V8
YoloX
EfficientNet-Lite
EfficientNet-V2
SFA3D
MonoDepth - MiDaS
U-Net
MoveNet
DeepLab
MobileNet V1-V2
MobileNetV2-SSD
GladNet
ABPN
SCI

SAKURA™ Modules and Cards

SAKURA-II modules and cards are architected to run the latest vision and Generative AI models with market-leading energy efficiency and low latency.

SAKURA-II M.2 modules are high-performance, 60 TOPS, edge AI accelerators in the small M.2 2280 form factor and are the best choice for space-constrained designs.

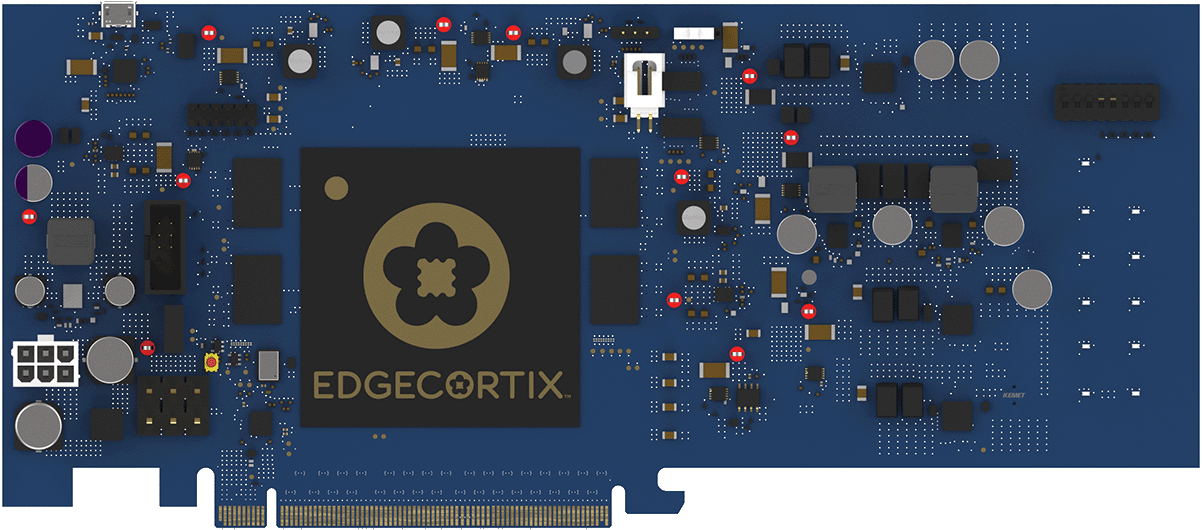

SAKURA-II PCIe Cards are high-performance, up to 120 TOPS, edge AI accelerators in the low profile, single slot PCIe form factor. With single and dual options, the best choice will depend on the overall performance needed.

SAKURA-II-M.2-Straight-Tilt-Back
SAKURA-II-Low-Profile-Straight-Tilt-Back

Explore our Complete Edge AI Platform

mera-blue-white-logo
MERA Compiler and Framework
Industry first software platform enabling AI inference across heterogeneous systems

Unique Software
Learn More
dna-blue-white-logo-v3
Dynamic Neural Accelerator Technology
Flexible, run-time reconfigurable, highly-parallelized and efficient architecture

Proprietary Architecture
Learn More
SAKURA-II-M.2-Straight
AI Accelerator Modules and Cards
Up to 240 TOPS in systems powered by the latest SAKURA-II AI Accelerators

Deployable Systems
Learn More
