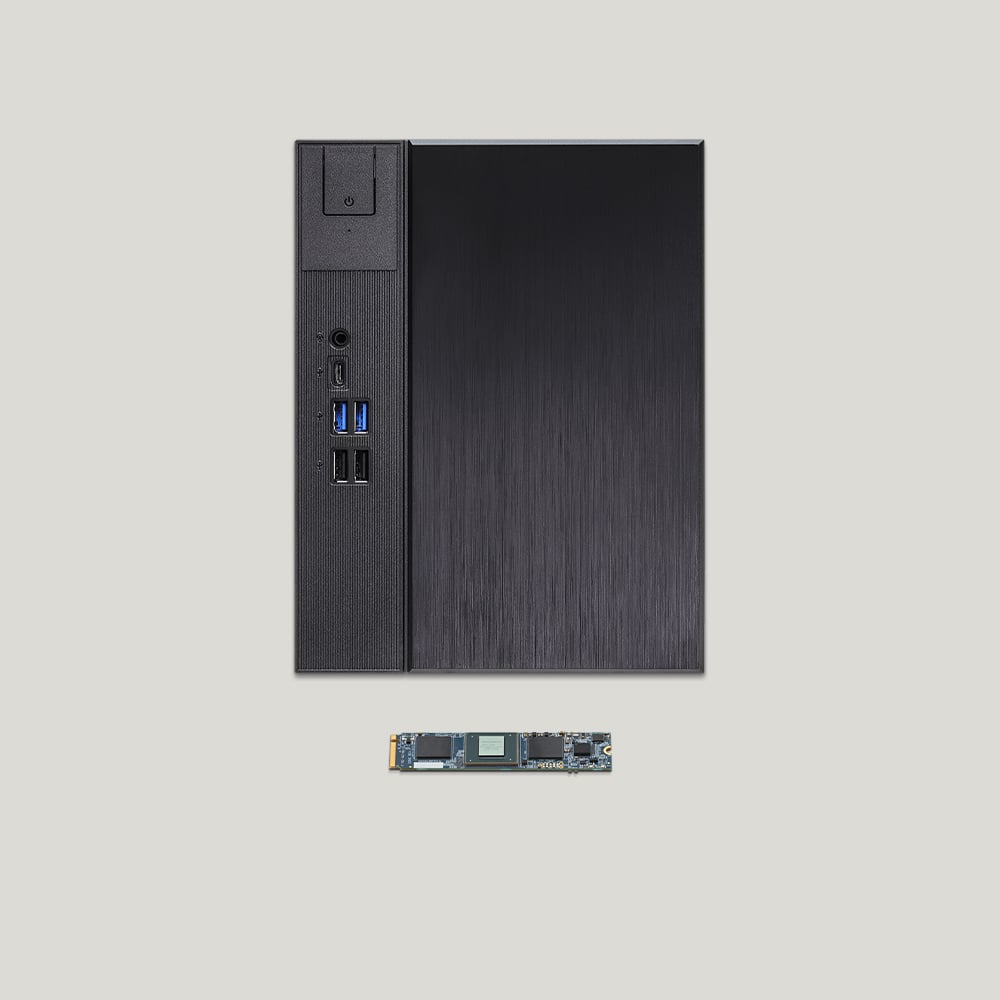

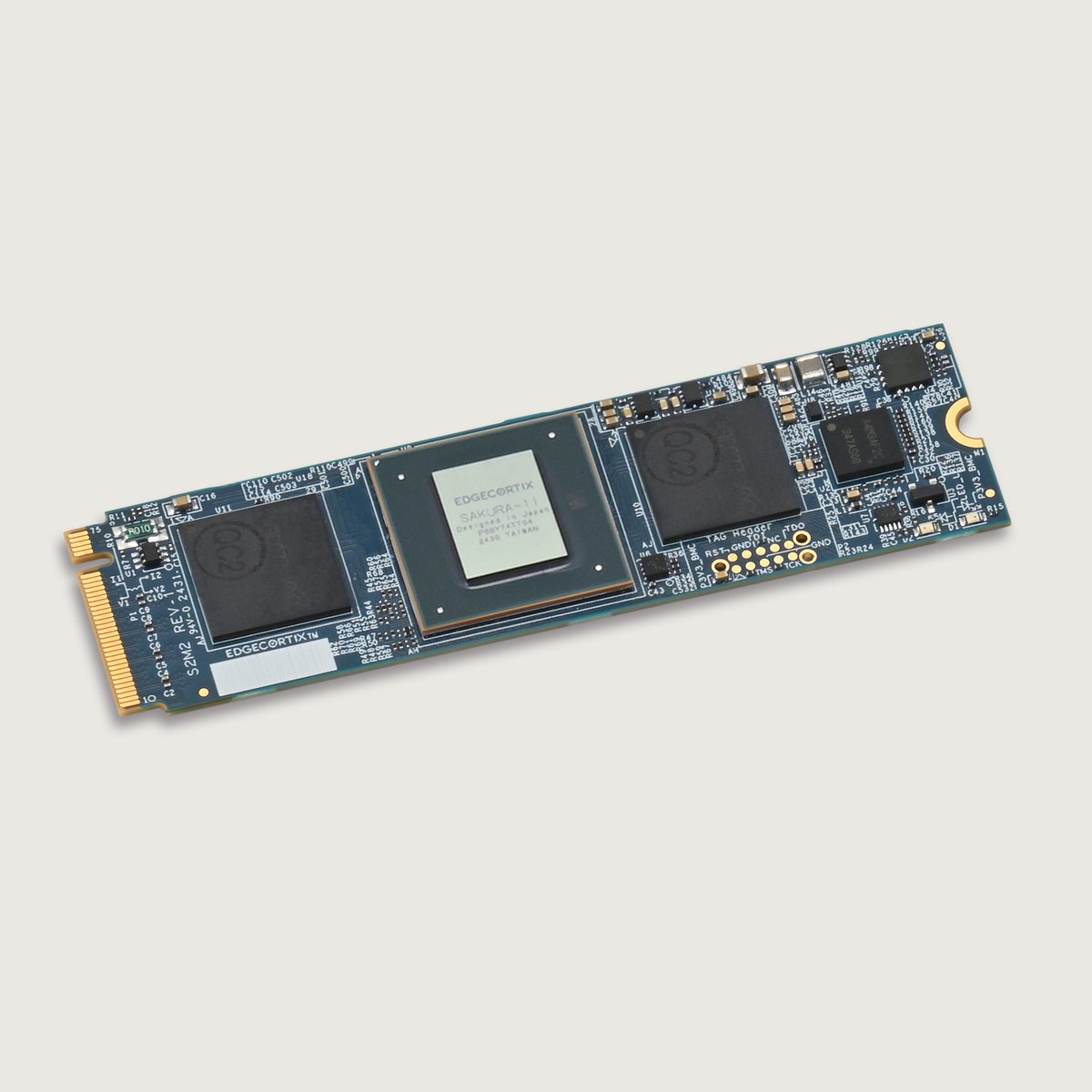

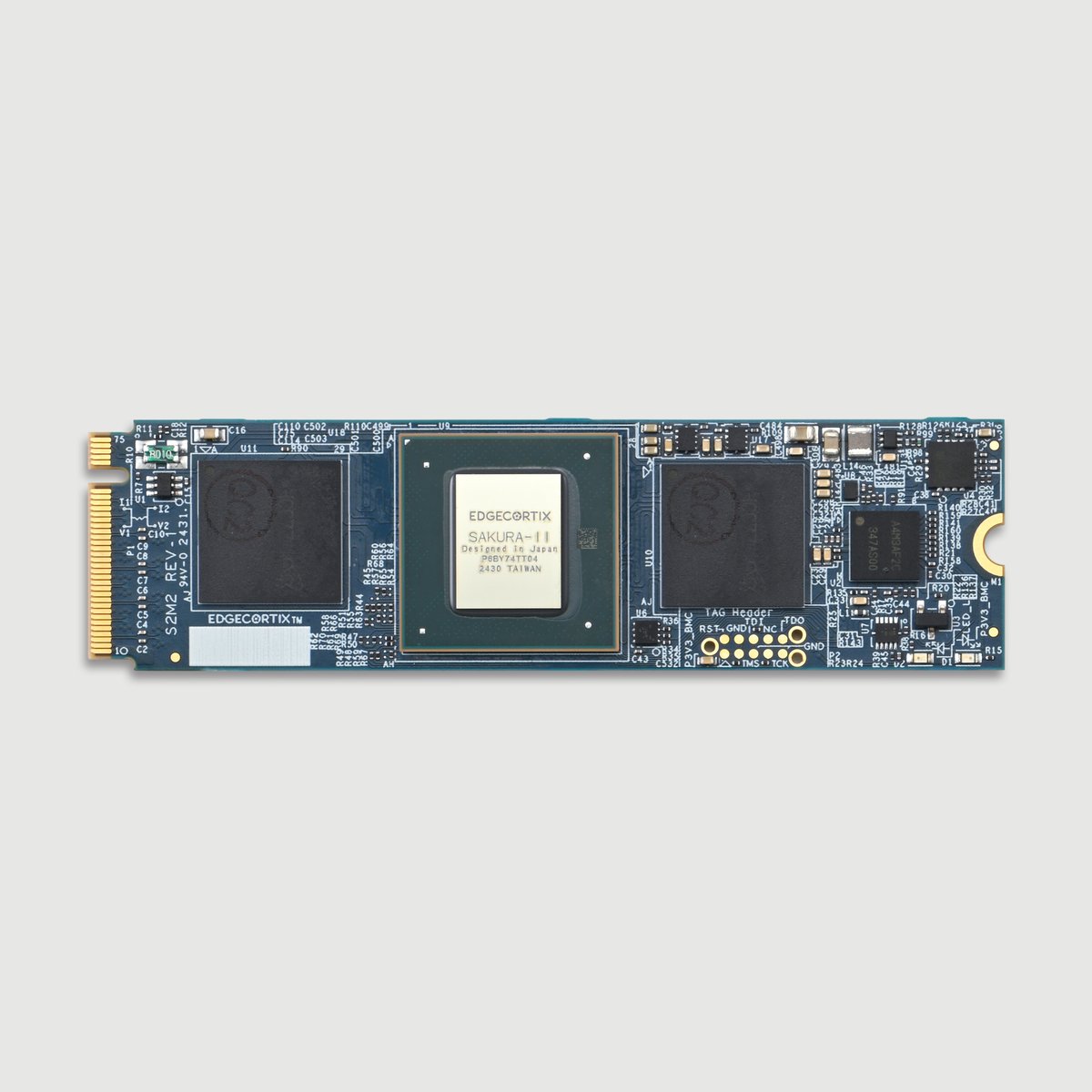

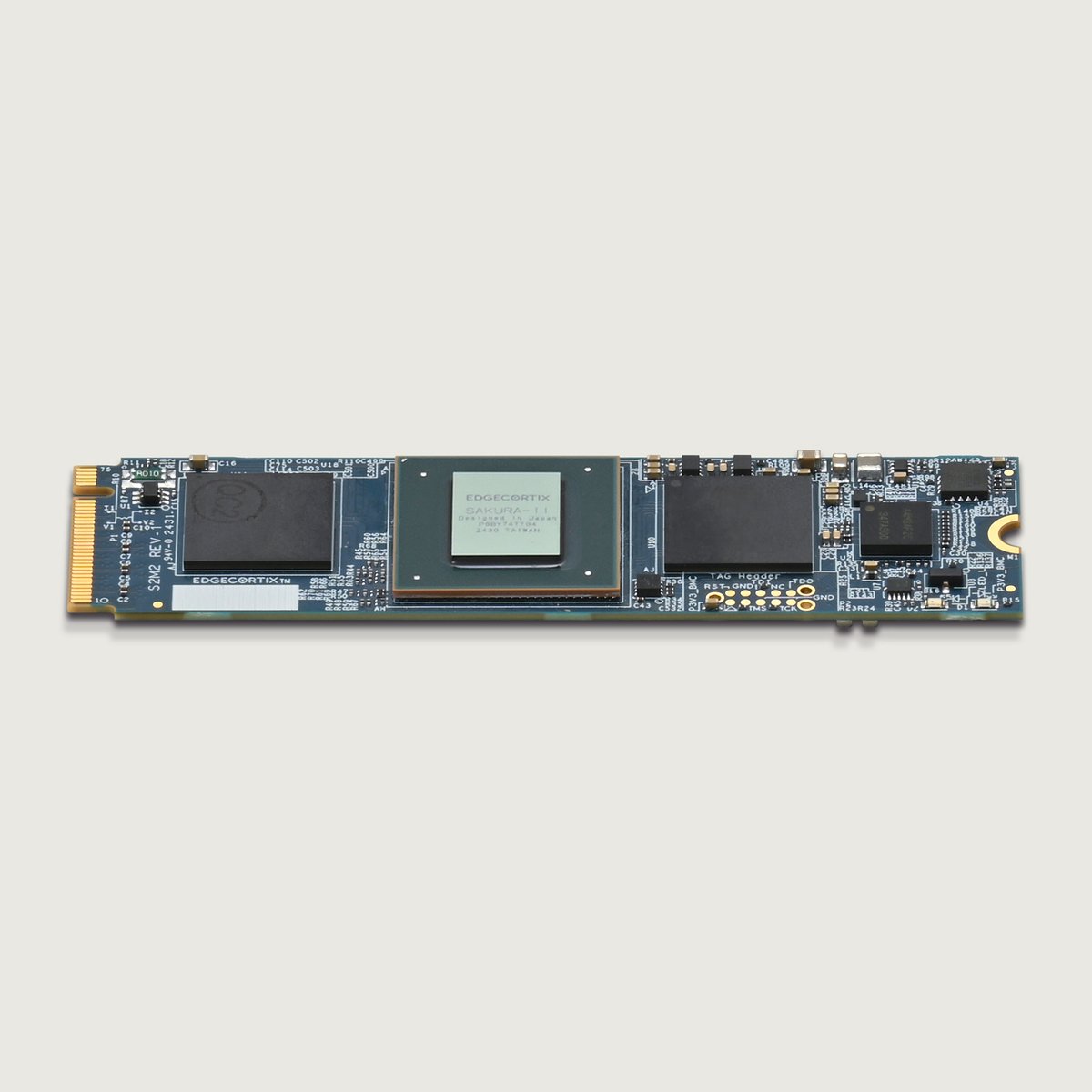

The small form factor M.2 Module, featuring the SAKURA-II accelerator, is ideal for space-constrained designs and features significant onboard DRAM, making it optimal for Generative AI and other memory-intensive AI applications like Large Language Models (LLMs).
DRAM Memory:8GB (2x banks of 4GB LPDDR4)
Form Factor:M.2 Key M 2280 (22mm x 80mm)
Host Interface:PCIe Gen 3.0 x4
Peak Performance:60 TOPS with INT8, 30 TFLOPS with BF16
Module Power:10W (typical)
Best choice for space-constrained and power limited designs with easy integration into small edge AI systems!
The small form factor M.2 Module, featuring the SAKURA-II accelerator, is ideal for space-constrained designs and features significant onboard DRAM, making it optimal for Generative AI and other memory-intensive AI applications like Large Language Models (LLMs).
DRAM Memory:16GB (2x banks of 8GB LPDDR4)
Form Factor:M.2 Key M 2280 (22mm x 80mm)
Host Interface:PCIe Gen 3.0 x4
Peak Performance:60 TOPS with INT8, 30 TFLOPS with BF16
Module Power:10W (typical)
Included Hardware: Fan sink
Best choice for space-constrained and power limited designs with easy integration into small edge AI systems!

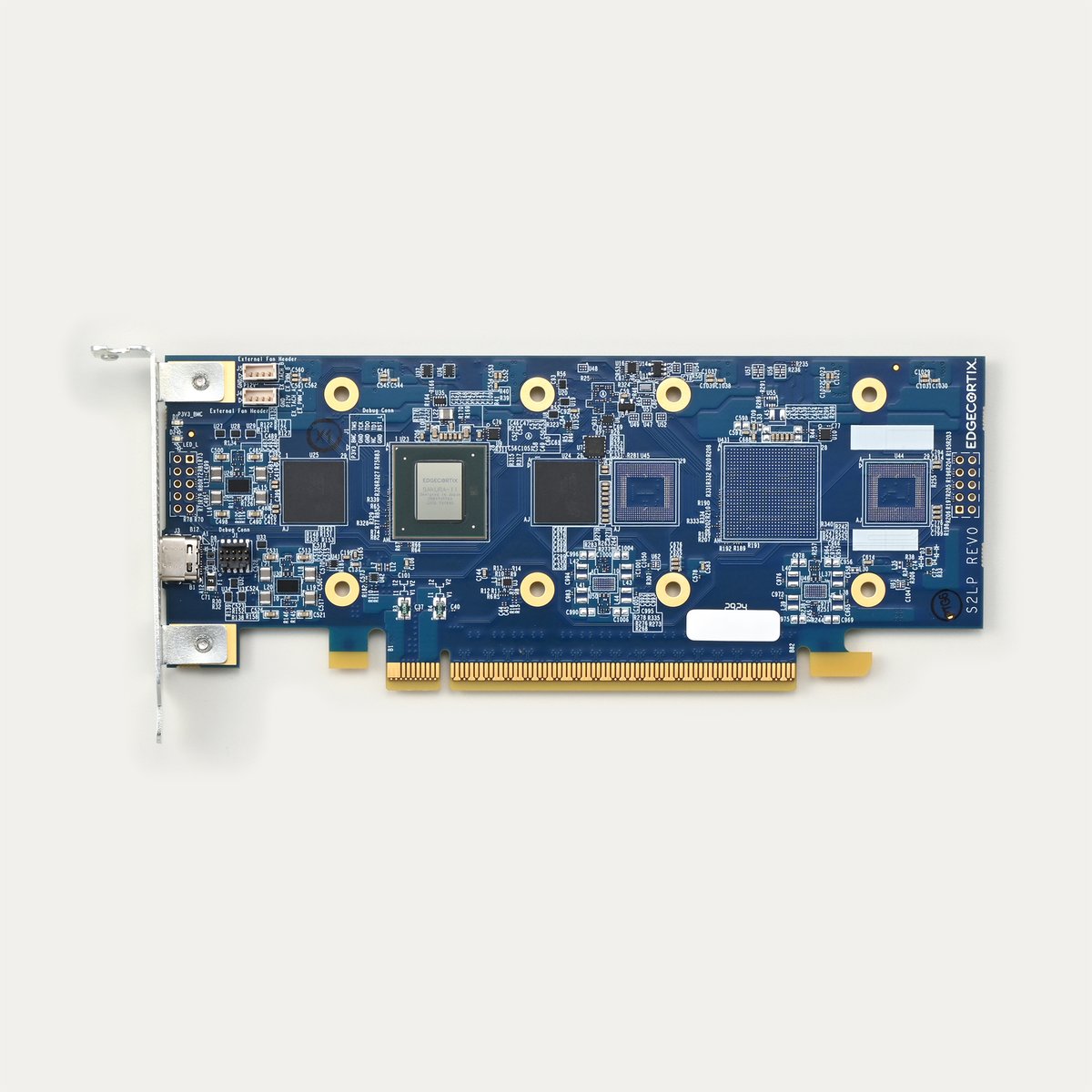

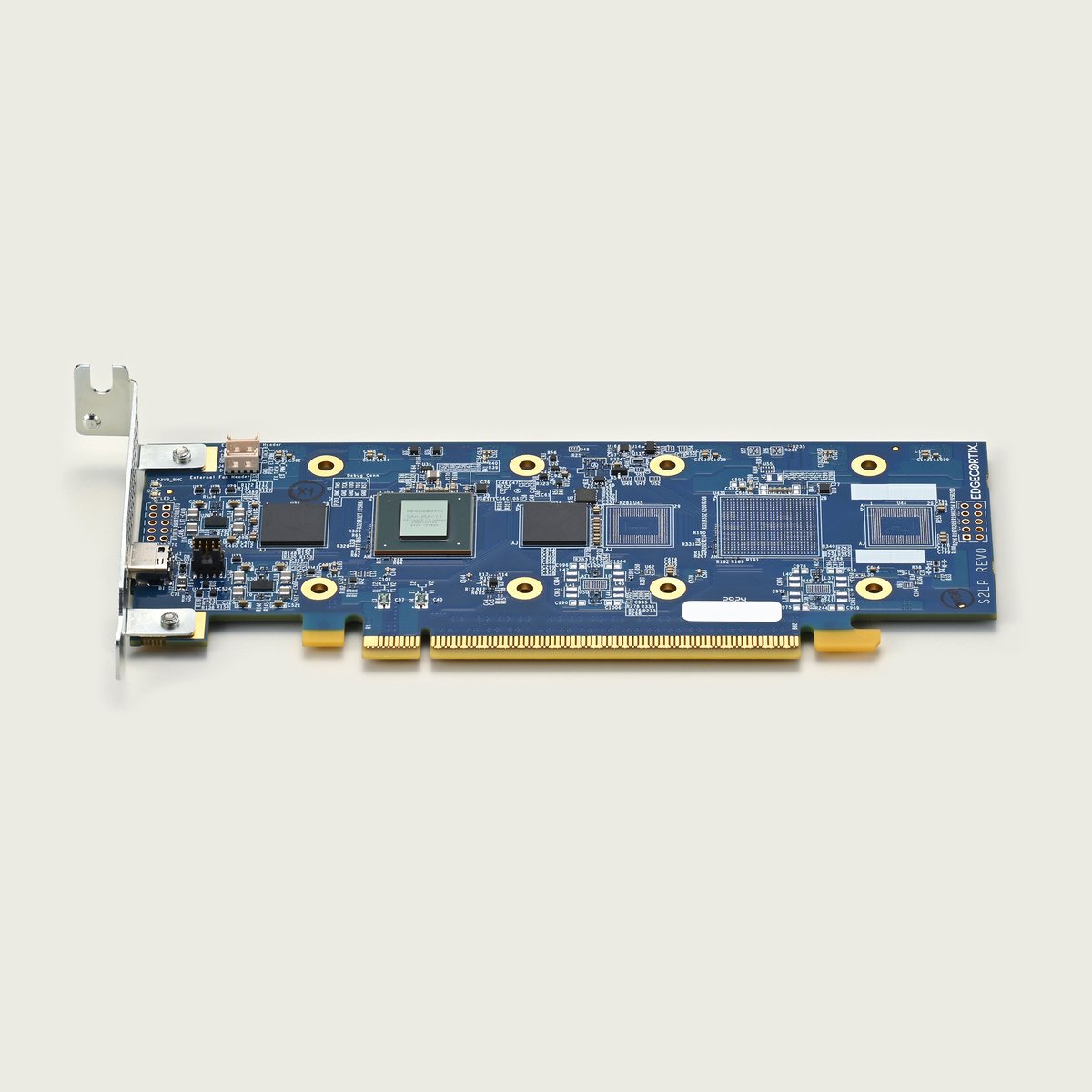

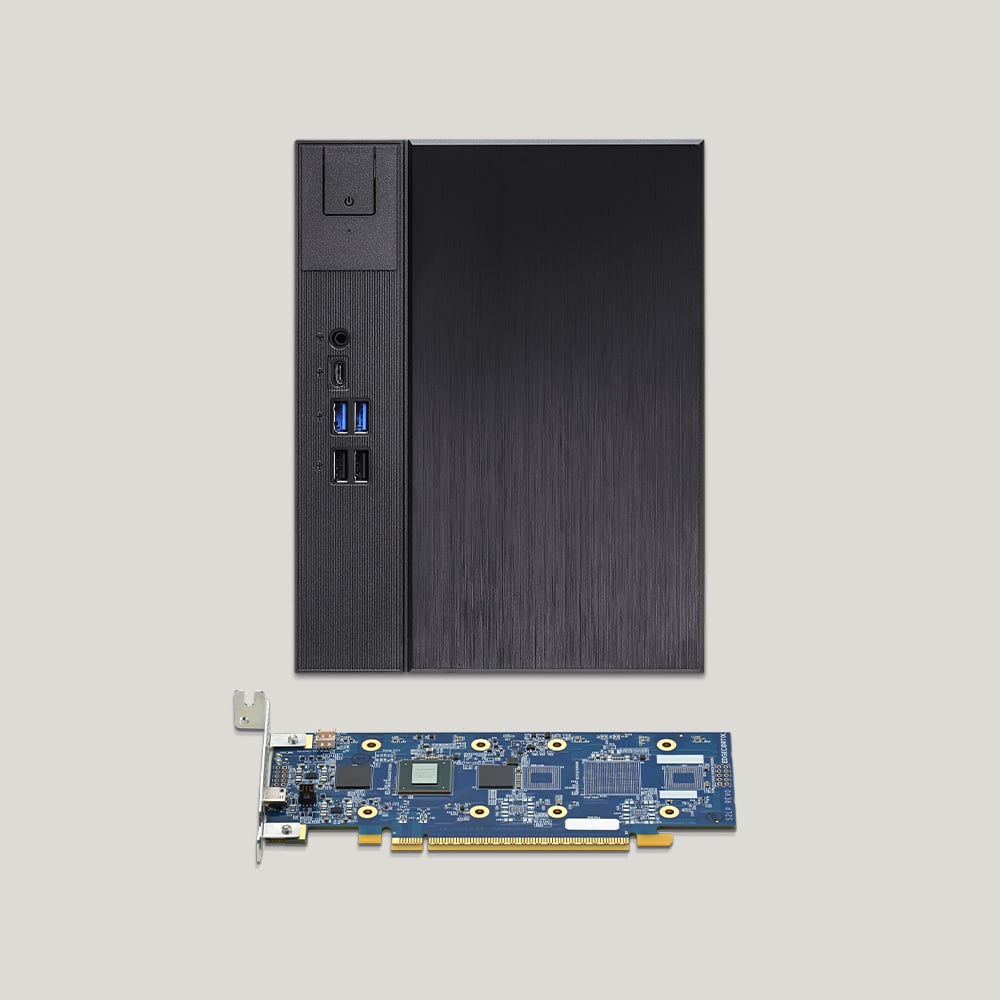

The PCIe Card featuring the SAKURA-II accelerator, is ideal for insertion into PCIe backplanes and fits comfortably into a single slot even with the attached heat sink. This card provides significant onboard DRAM, making it optimal for Generative AI and other memory-intensive AI applications like Large Language Models (LLMs).
DRAM Memory:16GB (2x banks of 8GB LPDDR4)
Form Factor:PCIe low profile, single slot
Host Interface:PCIe Gen 3.0 x8
Peak Performance:60 TOPS with INT8, 30 TFLOPS with BF16
Card Power:10W (typical)
Included Hardware:Half-height, full-height brackets and heat sink
Best choice for most Edge AI designs using the industry standard PCIe form factor!

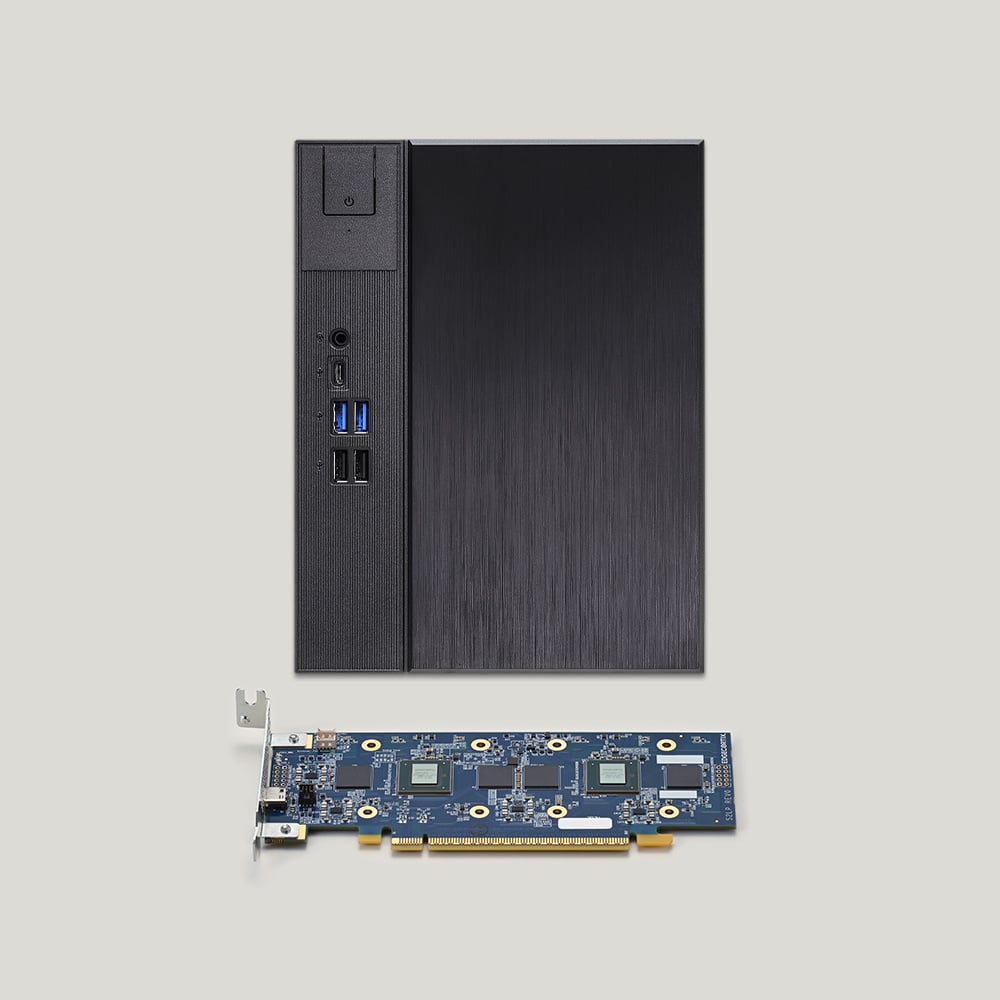

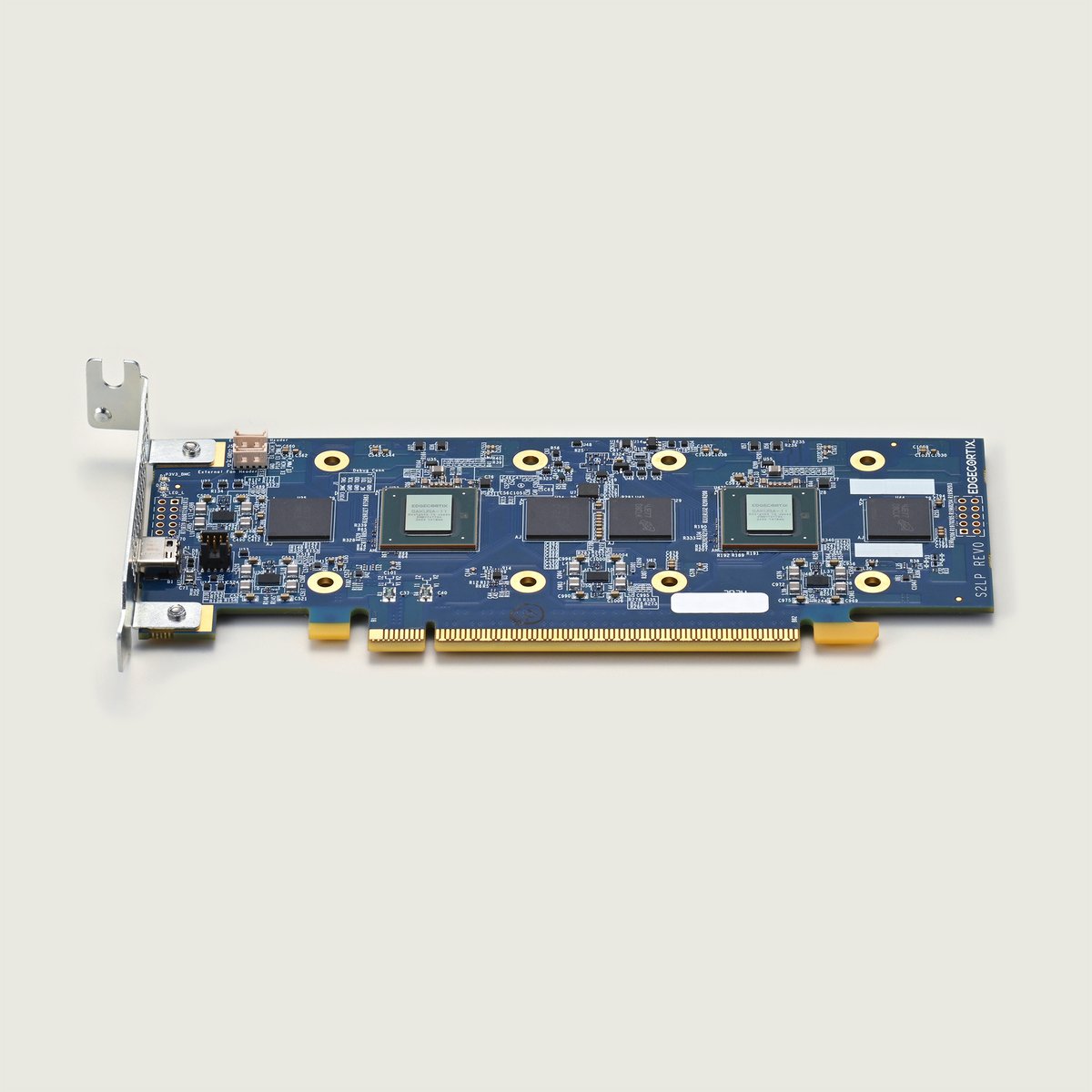

The Dual PCIe Card, featuring two SAKURA-II accelerators, is ideal for insertion into PCIe backplanes and fits comfortably into a single slot even with the attached heat sink. This card provides significant onboard DRAM, making it optimal for Generative AI and other memory-intensive AI applications like Large Language Models (LLMs).
DRAM Memory:32GB (4x banks of 8GB LPDDR4)
Form Factor:PCIe low profile, single slot
Host Interface:PCIe Gen 3.0 x8/x8 (bifurcated)
Peak Performance:120 TOPS with INT8, 60 TFLOPS with BF16
Card Power:20W (typical)
Included Hardware:Half-height, full-height brackets and heat sink
Best choice for designs that need the highest AI processing capability!
